7-position shrouded header for signal interconnect

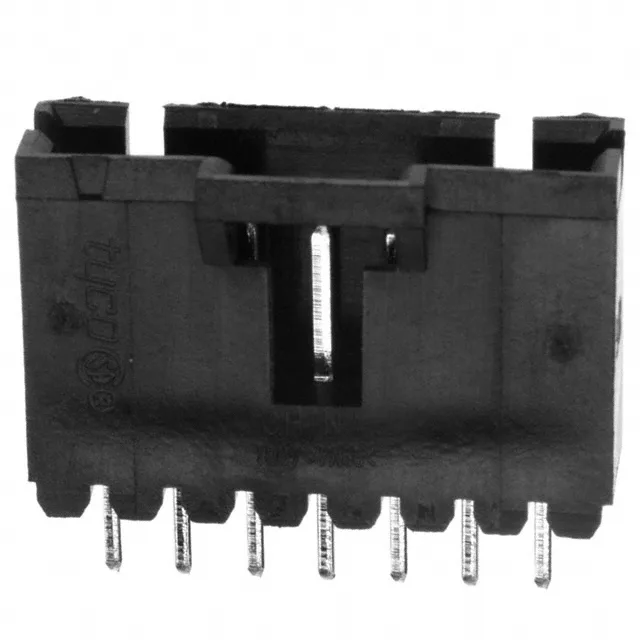

The 103639-6 is a 7-position, single-row header in the AMPMODU MTE series, with a 0.100" (2.54mm) pitch and a shrouded 4-wall housing that protects the male pins during mating and prevents misalignment in vibration-prone environments.
Through-hole termination and temperature range
Termination is through-hole solder, with a contact length of 0.130" (3.30mm) on the post side and 0.230" (5.84mm) on the mating side, giving a total contact length of 0.545" (13.84mm).
