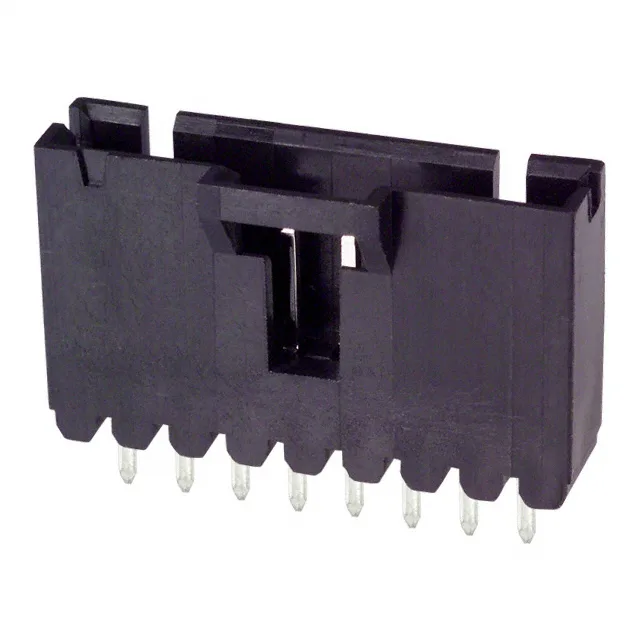

TE Connectivity AMP Connectors AMPMODU MTE series, 103639-7, 8-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, male pin contacts with tin-lead plating, rated 3A, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 103639-7 is an 8-position, single-row shrouded header from the AMPMODU MTE series, pitched at 0.100" (2.54mm) — the standard footprint for breadboard and prototype layouts, and common across many TE signal interconnect families.
The pitch is 0.100" (2.54mm), the standard spacing for many breadboard-compatible and legacy TE AMPMODU headers.
Yes, it is a shrouded header with a full 4-wall shroud that protects the pins and includes a keying slot to prevent mismating.
Through-hole mounting with solder termination — the 0.130" (3.30mm) post length is designed for standard PCB thickness.
Listed for automotive, general purpose, medical, and telecommunications equipment — the wide temperature range and shrouded design suit controlled and moderate environments.
It mates with AMPMODU MTE series receptacles (crimp or IDC types) that have the same 0.100" pitch, single-row layout, and latch-compatible housing.
