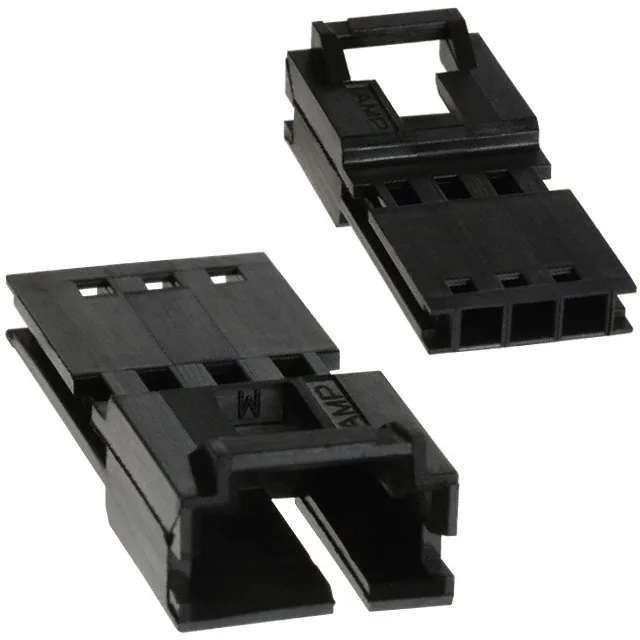

TE Connectivity AMPMODU MTE plug housing, 103653-2, 3 positions, 0.100" (2.54mm) pitch, single row, latch holder, black PBT, free hanging, crimp termination, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -65°C ~ 105°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
The 103653-2: This is the empty shell — the crimp terminals are ordered separately. It's built for free-hanging wire-to-board or wire-to-wire harnesses where the latch holder keeps the pair mated against vibration.
No. The housing accepts the standard AMPMODU MTE crimp contacts; make sure the BOM includes both.
For a wire-to-wire run, it mates with the matching receptacle housing — same series, same pitch, same latch interface.
No — the housing ships empty. The listing states "Contacts Not Included". You need to order the AMPMODU MTE crimp terminals separately.
This is a plug housing; it mates with the AMPMODU MTE shrouded header (male pins on the header side) or with the matching receptacle housing for wire-to-wire connections.
Active — the lifecycle status is Active with no end-of-life notice. RoHS compliant.
Sourced to order against your BOM quantity. Availability and pricing confirmed at quote time.
