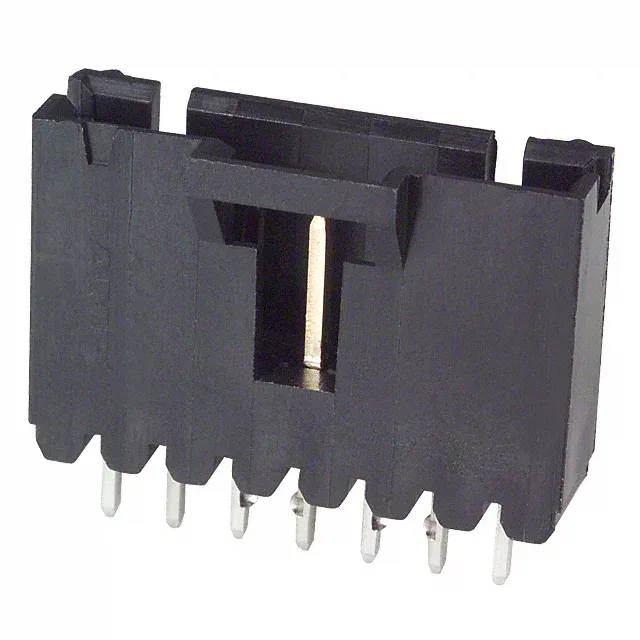

TE Connectivity AMPMODU MTE, 103670-6, 7-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole, press-fit/solder termination, latch holder, 3A, 267V, gold-plated mating contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 267V |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
It mates with AMPMODU MTE receptacles for board-to-board or cable-to-board connections.
The header accepts both press-fit and solder termination, giving flexibility for assembly.
Submit an RFQ for current pricing and lead time. No stock-holding claim is made; availability is confirmed at quote.
The 103670-6 mates with AMPMODU MTE receptacles of the same pitch and circuit count. For a 7-position cable assembly, use the matching receptacle housing and crimp terminals from the same series.
No, 103670-6 is RoHS non-compliant. The contact finish on the post is tin-lead (100.0µin). If RoHS compliance is required, check the series for a lead-free plating option.
