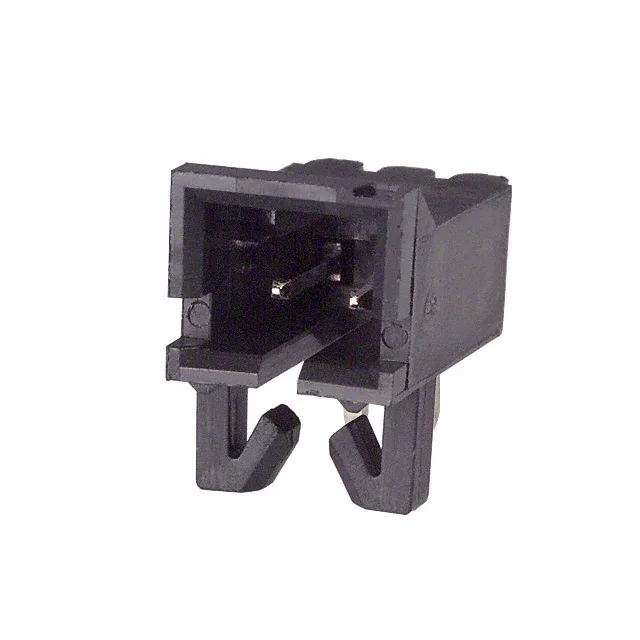

TE Connectivity AMPMODU MTE header, 103672-1, 2-position single-row, 0.100" (2.54mm) pitch, shrouded 4-wall, right-angle through-hole, latch holder, board lock, keying slot, 3A, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The dual-role style — Board to Board or Cable — means this header can serve as a mezzanine stacking interconnect or as the board-side half of a wire-to-board harness. The latch holder is the same interface used across the MTE receptacle family, so the mating half is a standard AMPMODU MTE crimp housing.
The insulation height of 0.200" (5.08mm) gives clearance for the latch mechanism above the board surface.
The latch holder on this header engages the latch on the MTE receptacle housing for a positive lock.
Both are 2-position, right-angle, shrouded headers with the same pitch and latch holder. For higher mating cycle counts or corrosive environments, the gold version is preferred.
