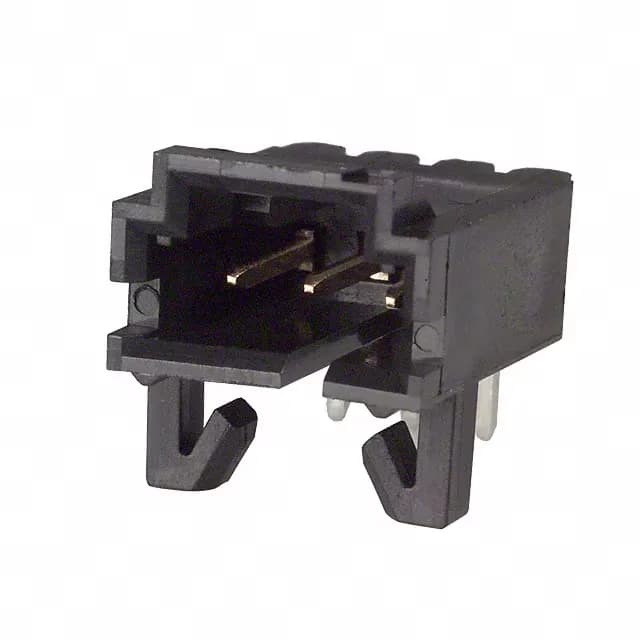

TE Connectivity AMPMODU MTE, Board to Board or Cable, Header, 3 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating Contact, Latch Holder, Board Lock, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Sourced through independent distribution; lead time and package availability (tube) are verified per RFQ.
This header accepts a mating AMPMODU MTE receptacle housing with crimp terminals. Termination is solder to through-hole. The contact length — 0.130" post and 0.230" mating — accommodates standard PCB thickness and mating depth.
Buyers need a reliable source to purchase the exact part, directly impacting the conversion decision.
Design engineers require the datasheet to validate electrical and mechanical fit before specifying the part.
Sourcing buyers compare pricing across distributors to manage BOM cost and stay within budget.
Compliance is mandatory for many industries; buyers must confirm this before purchase to avoid regulatory issues.
When the exact part is unavailable, a drop-in equivalent minimizes redesign and sourcing delays.
Maintenance techs and engineers need to know if the connector has a latch for secure mating in vibration-prone applications.
