Note: This part is RoHS non-compliant due to tin-lead plating on the solder posts. The contact finish thickness on the post is 100.0 µinch (2.54 µm) of tin-lead. Confirm your assembly's RoHS exemption before committing.

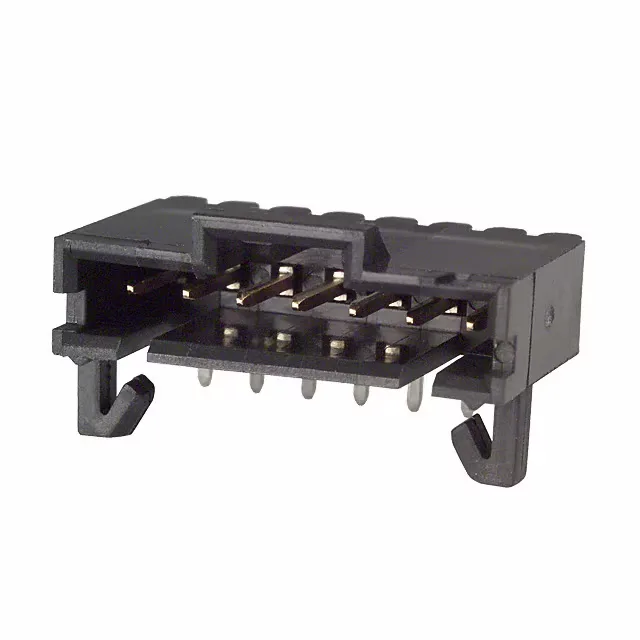

103673-6 TE Connectivity AMPMODU MTE Header, 7 Pos, 2.54mm
MPN103673-6
Active
TE Connectivity AMPMODU MTE header, 103673-6, single-row 7-position, 0.100" (2.54 mm) pitch, through-hole right-angle, gold-plated male pins, rated 3 A, active production.
$1.7600Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Is 103673-6 RoHS compliant?
No, the 103673-6 is RoHS non-compliant because the solder posts have a tin-lead finish (100.0 µinch). The mating contacts are gold-plated (15.0 µinch), but the overall part does not meet RoHS requirements.
What is the pitch and position count of 103673-6?
All positions are loaded.
