TE Connectivity AMP Connectors 103673-8 — Pin Headers, Sockets & Housings

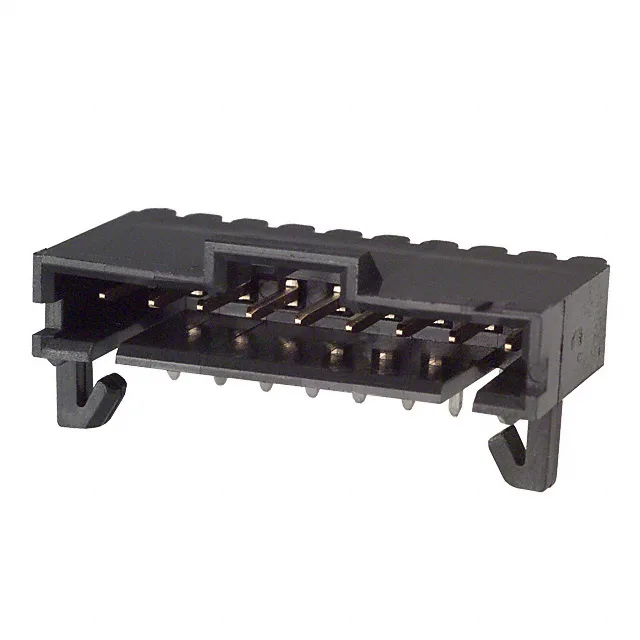

103673-8 TE AMPMODU MTE Header, 9 Pos, 0.100" Pitch

MPN103673-8
Active

TE Connectivity AMPMODU MTE series, 103673-8, single-row 9-position header, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock and keying slot, rated 3 A, -65°C to 105°C, UL94 V-0.

$1.3399Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103673-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

103673-8 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103673-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions9
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

9-position, 0.100" pitch, right-angle header with board lock

The 103673-8: It is a shrouded 4-wall header with a right-angle through-hole termination, designed for board-to-board or cable applications in automotive, general purpose, medical, and telecommunications equipment. The post contacts are tin-lead plated (100.0 µin) for reliable solder joints.

Board lock and keying slot for vibration resistance

The keying slot prevents mis-mating with non-keyed receptacles, reducing assembly errors. The latch holder fastening type secures the mating connector with an audible click, suitable for applications where the mated pair must stay locked under shock or vibration.

Frequently asked questions

Where can I buy 103673-8?

Submit a request for quote to confirm current pricing and lead time for your BOM quantity.

Does 103673-8 have a board lock feature?

Yes, the 103673-8 includes a board lock and a keying slot for secure PCB retention and alignment.

What is the mating connector for 103673-8?

The 103673-8 mates with AMPMODU MTE series receptacles that have a latch holder and matching keying. Confirm the specific receptacle part number against your application's circuit count and orientation.
