TE Connectivity AMP Connectors 103688-7 — Connector Housings

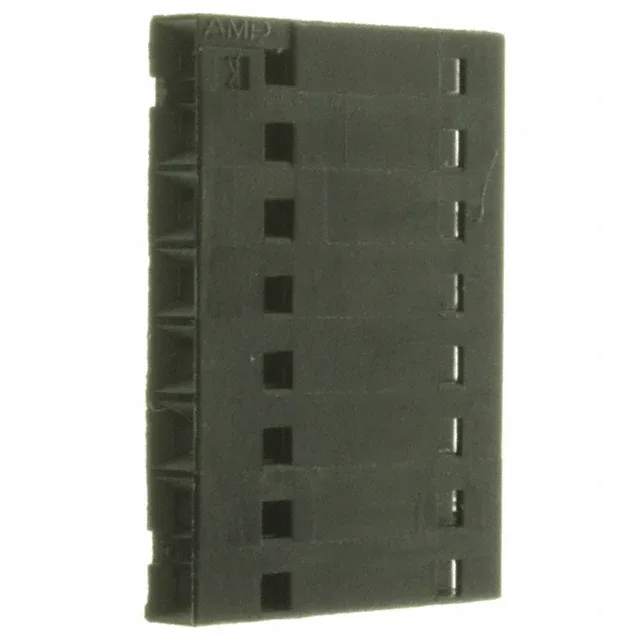

TE AMPMODU MTE 103688-7, 8-Pos Receptacle Housing, 2.54mm

MPN103688-7
Active

TE Connectivity AMPMODU MTE receptacle housing, 103688-7, 8 positions, 1 row, 0.100" (2.54mm) pitch, free-hanging (in-line), crimp termination, black thermoplastic, contacts not included.

$2.0700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

103688-7 specifications
ParameterValue
SeriesAMPMODU MTE
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions8

Product details

The TE Connectivity AMPMODU MTE 103688-7 is an 8-circuit, single-row receptacle housing built for crimp-and-poke wire-to-board or wire-to-wire interconnects.

This housing ships empty.

Mates with AMPMODU MTE 2.54mm-pitch shrouded or unshrouded headers — the single-row housing indexes to the header's polarization ribs, so you cannot reverse-mate it. Termination is crimp, free-hanging (in-line), so no PCB footprint is needed on the receptacle side; the wires route directly to the header on the board. The single-row, 8-position layout keeps the harness narrow — useful when routing through a 10mm-wide conduit or along a panel edge.

Frequently asked questions

Does 103688-7 include contacts?

No. The listing explicitly states Contacts Not Included. You must order the matching AMPMODU MTE female socket crimp terminals separately.

What is the mating connector for 103688-7?

It mates with any AMPMODU MTE 0.100" (2.54mm) pitch header — single-row, shrouded or unshrouded, male pin headers in the same series.
