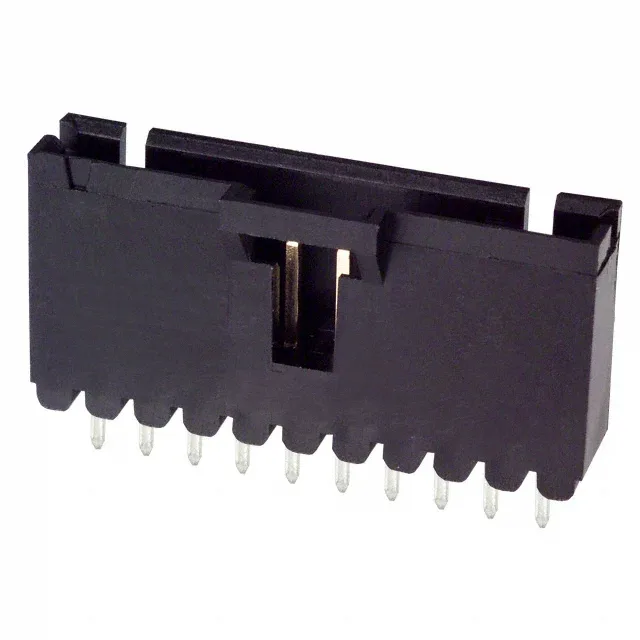

TE Connectivity AMP Connectors AMPMODU MTE, 10-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, 3 A per circuit, black thermoplastic UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It mates with AMPMODU MTE receptacle housings for wire-to-board or board-to-board connections.
It is RoHS non-compliant due to tin-lead plating on the solder tails — verify your assembly's exemption policy before committing the BOM line.
Mates with AMPMODU MTE receptacle housings (e.g., 103735-series sockets) that accept crimp terminals for 20-24 AWG wire.
The gold mating finish adds corrosion margin for humid or mildly aggressive environments.
The 103735-9 mates with AMPMODU MTE receptacle housings that accept crimp terminals.
TE lists Automotive as a target application. The -65°C to 105°C range and UL94 V-0 housing support underhood or cabin use, but the 30 µinch gold plating is not a high-cycle automotive grade — confirm the mating cycle requirement against your program's validation plan.
