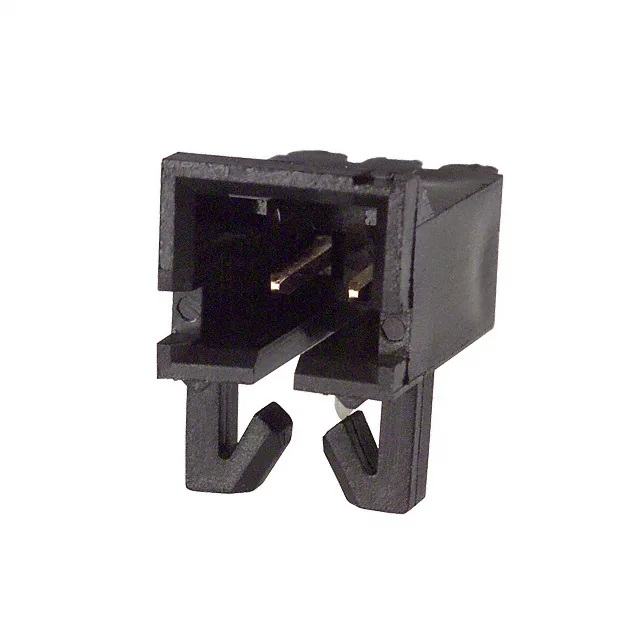

TE Connectivity AMP Connectors AMPMODU MTE header, 103904-1, 2 positions, single row, 0.100" (2.54 mm) pitch, through-hole right-angle, shrouded 4-wall, male pin, gold 30µin mating, board lock, keying slot, latch holder, UL94 V-0, -65°C ~ 105°C, 3 A
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103904-1 is a 2-position, single-row, right-angle header from TE's AMPMODU MTE series. The keying slot and latch holder together prevent mis-mating and keep the pair locked under vibration.
This header mates with AMPMODU MTE receptacles (e.g., 103905 series) and compatible 0.100" pitch crimp housings.
It is packaged in a tube.
The 103904-1 mates with AMPMODU MTE receptacles (such as the 103905 series) and any 0.100" pitch receptacle that accepts a latch holder. The latch holder on the header provides positive retention.
Yes, it includes both a board lock for through-hole solder retention and a keying slot to prevent incorrect mating. The keying slot aligns with a matching key on the receptacle.
