TE Connectivity AMP Connectors 103904-2 — Pin Headers

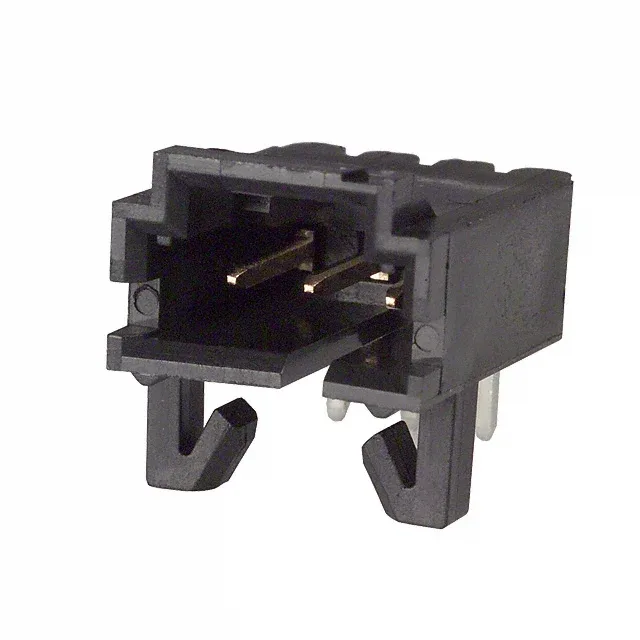

103904-2 TE Connectivity AMPMODU MTE Header, 3 Pos

MPN103904-2
Active

TE Connectivity AMP Connectors AMPMODU MTE, 103904-2, shrouded header, 3 positions, 2.54mm pitch, right-angle through-hole, male pin, gold mating finish, latch holder, board lock, UL94 V-0, -65°C to 105°C, 3A

$0.6200Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

103904-2 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103904-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock, Keying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle shrouded header, 3 positions, 2.54mm pitch

Gold mating finish and board lock for reliable assembly

The insulation height of 0.200" (5.08mm) and contact length of 0.230" (5.84mm) on the mating side provide a defined stack height for the mating receptacle.

Note that this header is RoHS non-compliant due to the tin-lead post finish. For RoHS-required builds, consider the tin-plated alternative 1394090-1 (6 positions, 2.85mm pitch) or other AMPMODU MTE variants with tin or gold plating that meet RoHS.

Frequently asked questions

Is 103904-2 RoHS compliant?

No, 103904-2 is RoHS non-compliant because the solder post finish is tin-lead. If your application requires RoHS compliance, review the tin-plated 1394090-1 or other AMPMODU MTE headers with tin or gold plating that are RoHS-compliant.

What is the mating connector for 103904-2?

103904-2 is a shrouded header that mates with AMPMODU MTE receptacle housings (e.g., 103905 series) using the same 2.54mm pitch and latch holder feature. Confirm the circuit count and keying slot alignment with the receptacle part number for your wire-to-board or board-to-board assembly.
