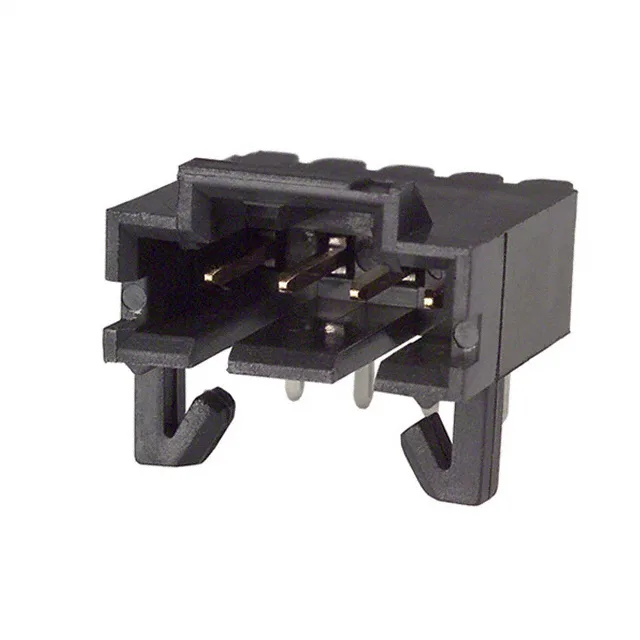

TE Connectivity AMP Connectors AMPMODU MTE header, order code 103904-3, 4 positions, single row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
TE AMPMODU MTE 103904-3 Header, 4 Pos, 0.100" Pitch
MPN103904-3
Active
TE Connectivity AMP Connectors AMPMODU MTE header, order code 103904-3, 4 positions, single row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$0.9598Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the 103904-3's listed style?
The listed style is Board to Board or Cable.
What compliance documentation does TE Connectivity provide for 103904-3?
No RoHS or REACH documentation is on record in the catalog entry.
