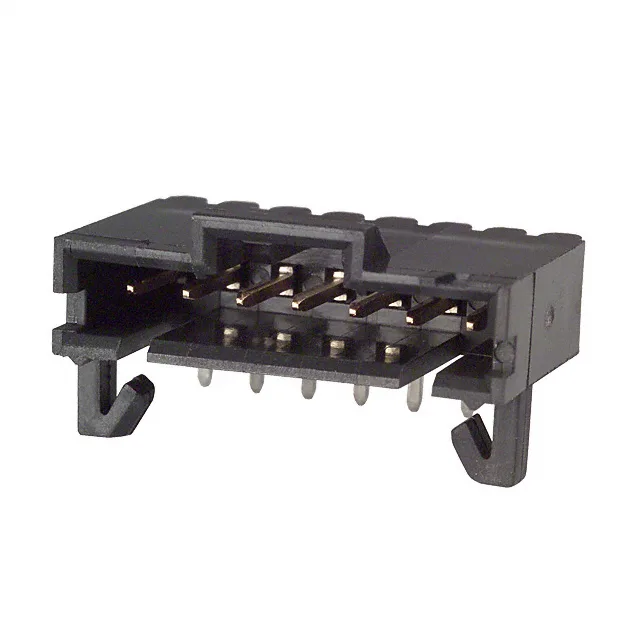

TE Connectivity AMPMODU MTE header, order code 103904-6, 7 positions, single row, 0.100" (2.54mm) pitch, 3A, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded 4-wall, latch holder, board lock, keying slot.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103904-6 is the 7-position member of TE's AMPMODU MTE header line, a single-row shrouded 4-wall header for board-to-board or cable connections. It mounts through-hole right-angle, carries gold-plated mating contacts rated 3A, and includes a latch holder, board lock, and keying slot for positive retention and mis-mate prevention.
Ships in tube packaging. Availability and pricing confirmed per RFQ.
The 103904-6 is listed as a Board to Board or Cable style header.
RoHS and REACH documentation is available from the manufacturer.
