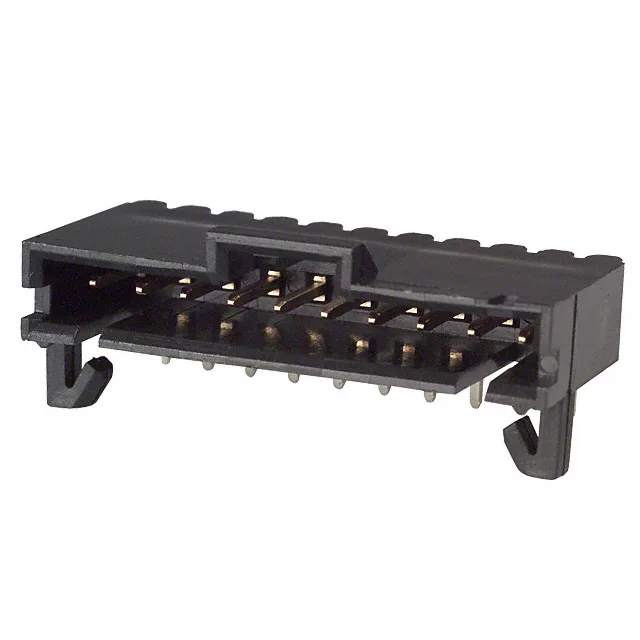

TE Connectivity AMPMODU MTE header, 103904-9, 10-position single-row, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, latch holder, 3 A, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103904-9 is a 10-position, single-row header from TE's AMPMODU MTE series. Board lock features on the through-hole tails hold the header flat during wave solder and improve shear strength from cable strain.
The thermoplastic housing meets UL94 V-0.
The part ships in tube packaging.
No, it is listed as RoHS non-compliant because the solder tails have a tin-lead finish. If your application requires RoHS, check the lead-free AMPMODU MTE options.
It mates with AMPMODU MTE single-row receptacle housings and crimp socket contacts. The latch holder on this header locks with the corresponding latch on the receptacle.
The header has 10 positions in a single row, all loaded. The square male pins are on 0.100" (2.54mm) centers. Pin 1 is typically marked by a keying slot or a chamfer on the housing.
Within the AMPMODU MTE series, there are other 10-position single-row headers with different plating (e.g., all gold or all tin) and without board lock. Confirm the mating half and plating requirements before substituting.
