TE Connectivity AMP Connectors 103906-1 — Pin Headers

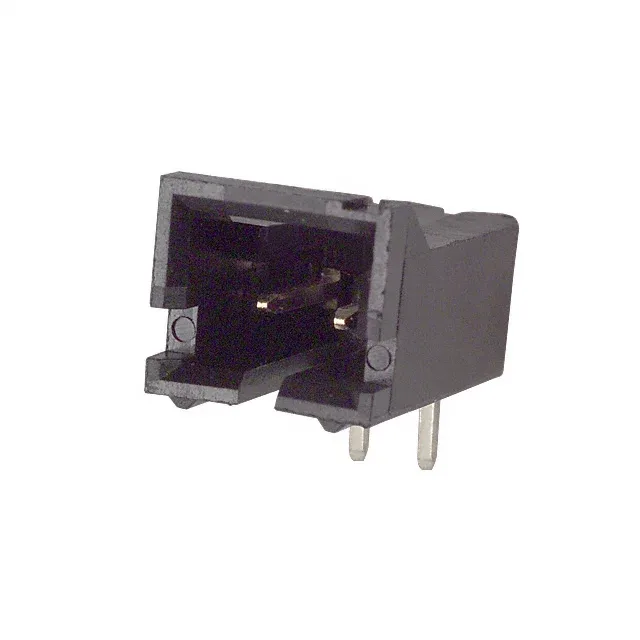

103906-1 TE Connectivity AMP Connectors Pin Header, 2 Pos

MPN103906-1
Active

TE Connectivity AMP Connectors AMPMODU MTE, 103906-1, Header, 2 positions, 0.100" (2.54mm) pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Gold mating finish, 3A, UL94 V-0

$0.9300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 103906-1 datasheet (PDF)
RoHSRoHS non-compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

103906-1 key specifications
ParameterValue
SeriesAMPMODU MTE
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

103906-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions2
Contact finish - postTin-Lead
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle 2-position header for tight board-edge layouts

The 103906-1 is a 2-position, single-row, right-angle through-hole pin header from the AMPMODU MTE series. Rated 3A per contact with a gold mating finish (30.0µin) and tin-lead post finish, it operates from -65°C to 105°C, suiting automotive, medical, telecom, and general-purpose environments.

Latch holder and keying slot for vibration-resistant mating

The brass square pins (0.230" mating length, 0.130" post length) are designed for reliable solder joints in standard 1.6mm PCBs.

The tin-lead post finish makes this part RoHS non-compliant. For RoHS-regulated builds, verify exemption eligibility or consider a lead-free alternative in the AMPMODU MTE series.

Frequently asked questions

What is the pitch and position count of 103906-1?

It has 2 positions on a single row at 0.100" (2.54mm) pitch, all positions loaded.

Is 103906-1 shrouded?

Yes, it is shrouded with a 4-wall design that protects the pins and guides the mating connector.

What is the closest pin-compatible alternative to 103906-1 in the AMPMODU MTE series?

Within the same series, a 2-position, 0.100" pitch, right-angle, shrouded header with the same latch and keying slot is the direct alternative. Confirm the post finish (tin-lead vs. lead-free) and contact finish (gold vs. tin) for your application.
