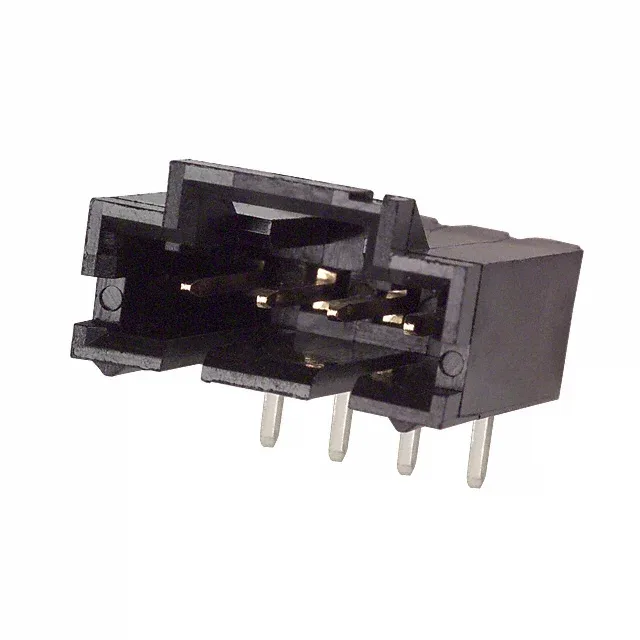

TE Connectivity AMPMODU MTE header, 103906-3, 4-position single-row, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, latch holder, gold mating contacts, rated 3A, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
A latch holder on the header locks with the mating receptacle, resisting disconnection under vibration — useful for automotive, medical, and telecom equipment where the cable sees movement.
No. The contact finish on the post is tin-lead (100.0µin), making this part RoHS non-compliant. Check your assembly's exemption status before ordering.
This header mates with AMPMODU MTE receptacles that have a latch-compatible housing. The 0.100" pitch and single-row layout are standard — confirm the mating half's position count and keying slot alignment.
