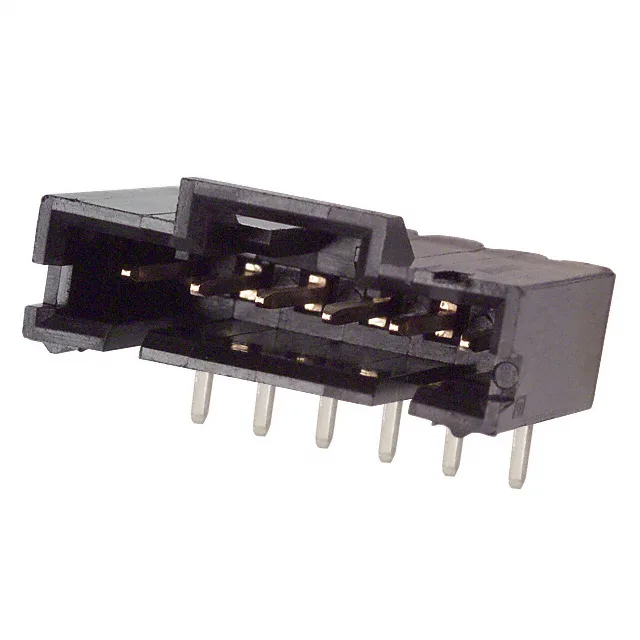

TE Connectivity AMPMODU MTE header, order code 103906-5, 6 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded 4-wall, latch holder, UL94 V-0, tube.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103906-5: Gold mating contacts rated 3 A per circuit; the 4-wall shroud and latch holder protect against mis-mate and vibration back-out.
The 103906-5 is RoHS non-compliant; the contact post finish is tin-lead.
103906-5 is an active TE AMPMODU MTE header. Order through the listed distributor channels; availability confirmed at RFQ.
No. The 103906-5 is RoHS non-compliant due to tin-lead contact post finish.
