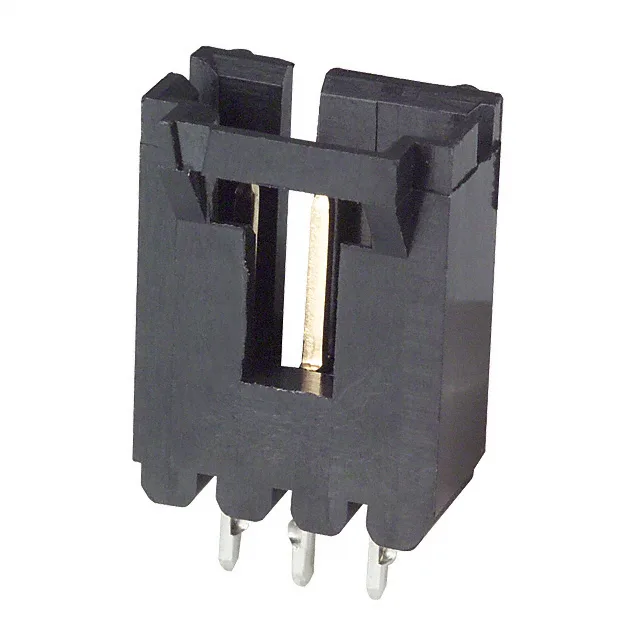

TE Connectivity AMPMODU MTE header, 103908-2, 3-position single-row, 0.100" (2.54mm) pitch, shrouded 4-wall, latch holder, gold mating finish, press-fit/solder termination, 3 A, -65°C ~ 105°C, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The latch holder distinguishes this from a plain friction-lock header — it locks audibly to the mating receptacle and resists vibration-induced disconnection.
Termination is listed as press-fit or solder — the through-hole post length of 0.130" (3.30mm) allows wave-solder, while the press-fit option suits backplane assembly where rework is a consideration.
The 103908-2 mates with AMPMODU MTE cable assemblies or receptacles that use the same 0.100" (2.54mm) pitch, single-row layout, and latch-compatible housing. The latch holder on this header engages the mating receptacle's locking ramp.
Yes, a datasheet is available from TE Connectivity for the AMPMODU MTE series. It includes the dimensional drawing, material callouts, and derating curves for the 3 A rating.
