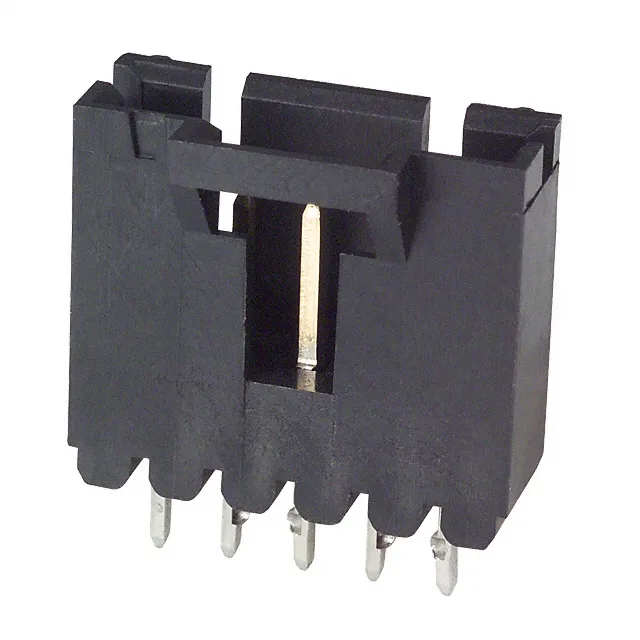

TE Connectivity AMP Connectors AMPMODU MTE series, 103908-4, Board to Board or Cable, 5 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Latch Holder, Gold Mating Finish, 3A, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The contact posts are tin-lead plated (100.0µin). The 4-wall shrouding protects pins during handling and mating.
No stock-holding claim; availability verified on request.
Termination options include press-fit and solder — the through-hole mounting suits both wave-solder and press-fit assembly processes. The header features a keying slot to prevent mis-mating with non-keyed receptacles. The insulation material is thermoplastic rated UL94 V-0.
All positions are loaded.
Yes, the 103908-4 includes a keying slot to prevent incorrect mating with non-keyed receptacles.
