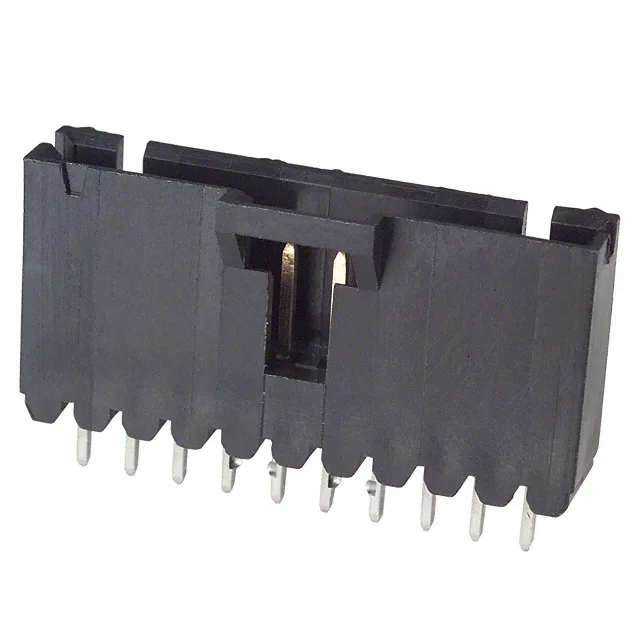

TE Connectivity AMP Connectors AMPMODU MTE, 103908-9, Header, 10 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Press-Fit/Solder, Gold Mating Finish, Latch Holder, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.545\" (13.84mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103908-9 is a 10-position, single-row header from the AMPMODU MTE series, on 0.100" (2.54mm) pitch.
Termination is listed as press-fit or solder — the through-hole tail (0.130" post length) allows conventional soldering, while the press-fit option eliminates the wave solder step for backplane or high-reliability builds.
The 103908-9 mates with AMPMODU MTE receptacle housings that accept the matching crimp terminals. The latch holder on the header engages the latch on the receptacle for a vibration-resistant connection.
All positions are loaded. The mounting type is Through Hole with a 0.130" (3.30mm) post length.
