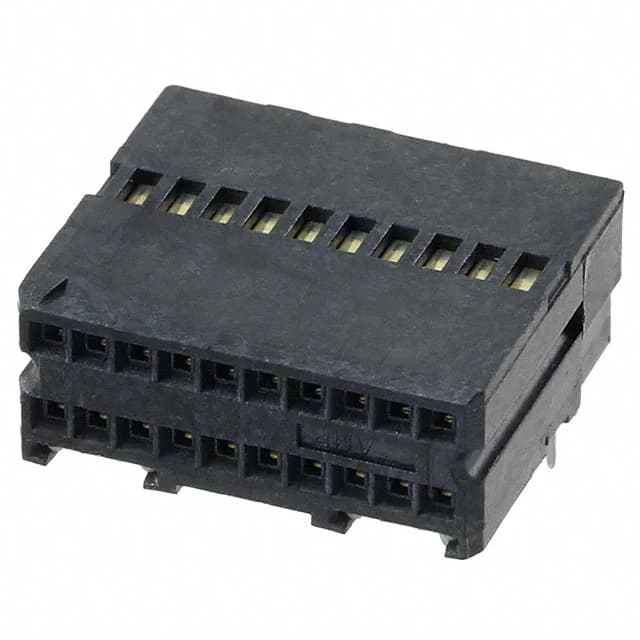

TE Connectivity AMP Connectors AMPMODU System 50 receptacle, order code 103911-2, 20 positions, dual row, 0.050" (1.27mm) pitch, 30VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
TE 103911-2 AMPMODU System 50 Receptacle, 20 Pos, 1.27mm
MPN103911-2
Active
TE Connectivity AMP Connectors AMPMODU System 50 receptacle, order code 103911-2, 20 positions, dual row, 0.050" (1.27mm) pitch, 30VAC, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.8495Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the 103911-2 in the AMPMODU System 50 family?
The 103911-2 is the 20-position dual-row right-angle receptacle in the AMPMODU System 50 series; other position counts or orientations would require a different board footprint.
