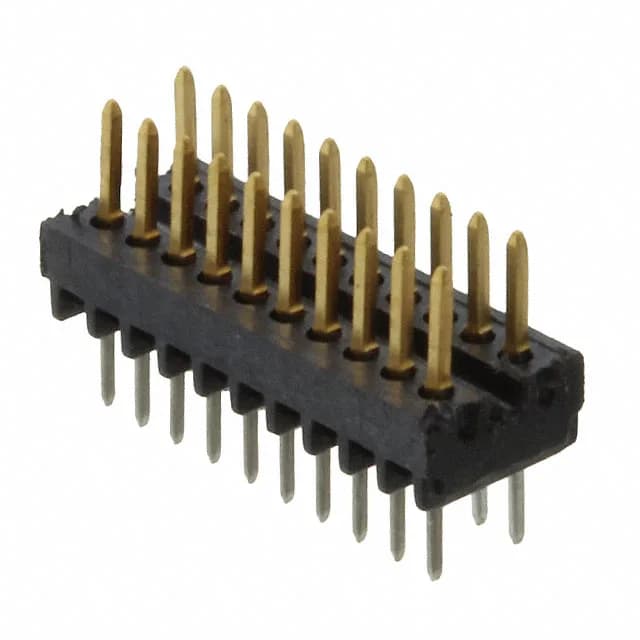

TE Connectivity AMP Connectors AMPMODU System 50 header, order code 103916-2, 20 positions, dual row, 1.27 mm pitch, 30 VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Overall contact length | 0.325\" (8.26mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 103916-2 is the 20-position member of TE's AMPMODU System 50 header line, a dual-row unshrouded male pin header with square contacts on 1.27 mm pitch. Gold-plated mating contacts rated 30 VAC suit signal-level board-to-board or cable interconnects in automotive, medical, and telecom equipment.
Submit a request for current lead time and volume pricing.
RoHS and REACH compliance documentation is available from the manufacturer.
