TE Connectivity AMP Connectors 104068-1 — Pin Headers

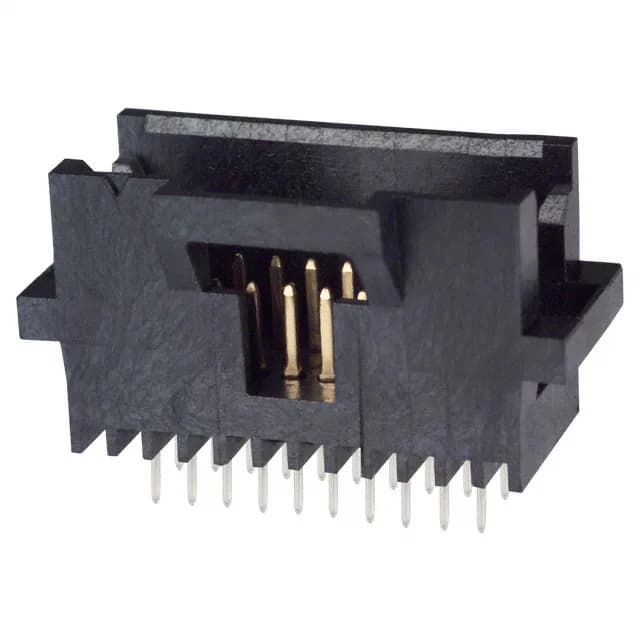

104068-1 TE Connectivity AMPMODU System 50 Header 20 Pos

MPN104068-1
Active

TE Connectivity AMPMODU System 50, 104068-1, Board to Board or Cable, Header, Male Pin, 20 Positions, 0.050" (1.27mm) Pitch, 2 Rows, Through Hole, Solder, Gold Mating Finish, Latch Holder, Black Thermoplastic, UL94 V-0

$5.0500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104068-1 datasheet (PDF)
RoHSNot applicable
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

104068-1 key specifications
ParameterValue
SeriesAMPMODU System 50
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating30VAC
Operating temperature-65°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

104068-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeCircular
Rows2
Pitch0.050\" (1.27mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

What this 20-position shrouded header does

The 104068-1 is a 20-position, two-row, shrouded header from the AMPMODU System 50 series, with a 0.050 inch (1.27 mm) mating pitch and 0.100 inch (2.54 mm) row spacing.

This header mates with AMPMODU System 50 receptacle housings on the same 1.27 mm pitch. The latch holder engages with a corresponding latch on the receptacle side, providing positive retention without additional hardware. The 0.125 inch (3.18 mm) mating pin length is designed for standard AMPMODU System 50 receptacles; verify the receptacle's mating depth against your application's stack-up.
