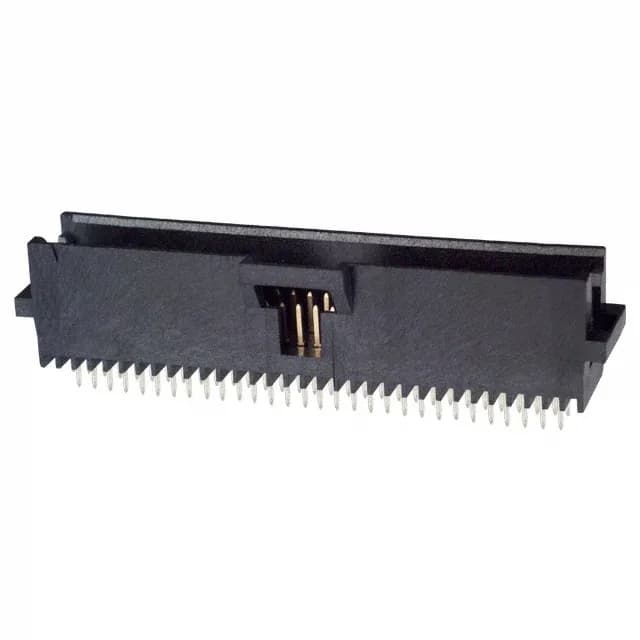

TE Connectivity AMPMODU System 50, header, 60 positions, 2 rows, 1.27mm pitch, shrouded - 2 wall, through-hole solder, gold mating finish, latch holder, black thermoplastic, UL94 V-0, -65°C to 105°C, 30VAC rating.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104068-6 is a 60-position, 2-row shrouded header from the AMPMODU System 50 series, on a 1.27mm pitch.
At 1.27mm pitch with 60 positions loaded, this header occupies roughly 38mm of board edge per row. The 0.100" (2.54mm) row spacing gives a 2.54mm gap between rows, which is wider than the pitch itself — a layout detail that matters when routing traces between the two rows.
