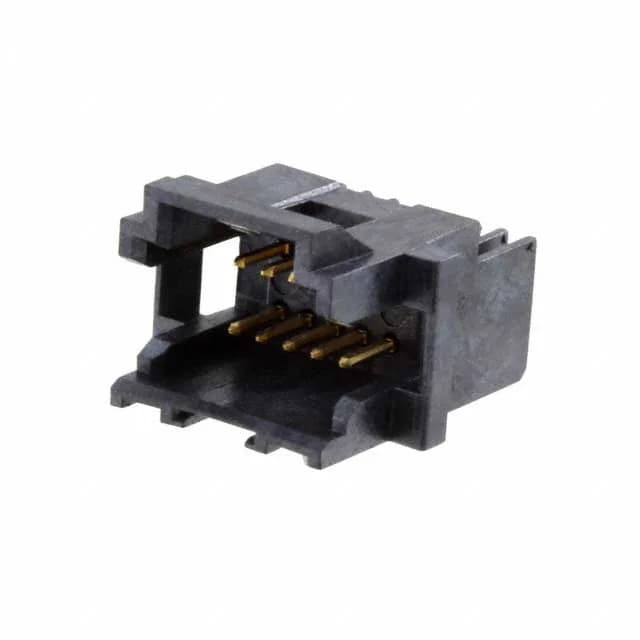

TE Connectivity AMPMODU System 50 header, 104069-4, 10-circuit, 2-row, 1.27mm pitch, right-angle through-hole, shrouded 2-wall, gold-plated mating contacts, UL94 V-0 black thermoplastic, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104069-4: The 0.050-inch (1.27 mm) pitch on the mating interface sets the minimum trace/space on the PCB — at this density, a two-layer board can route the 10 signals without a via farm if the traces neck down between pads.
The circular male pins are copper alloy with gold flash; the post finish is tin-lead (150 µinch) for solder-joint compatibility with standard through-hole wave solder profiles.
The mating pitch is 0.050 inch (1.27 mm). The row spacing is 0.100 inch (2.54 mm).
The listed applications include Automotive, General Purpose, Medical, and Telecommunications — the -65°C to 105°C range and UL94 V-0 housing support these environments.
The contact finish on the post is tin-lead (150 µinch), which indicates the part is not RoHS-compliant for lead content. Verify your application's exemption requirements.
