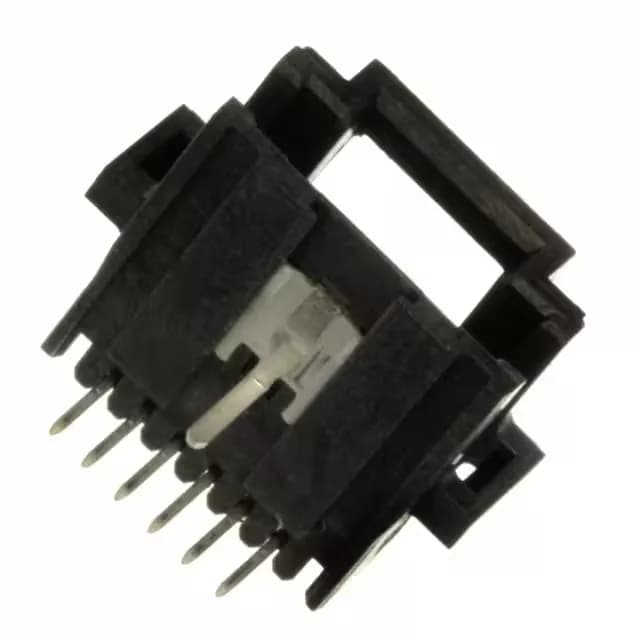

TE Connectivity AMPMODU System 50 header, 104074-8, 6 positions, 1.27 mm pitch, single row, right-angle through-hole, shrouded 2-wall, gold mating finish, UL94 V-0, -65°C to 105°C.
104074-8 TE Connectivity AMPMODU System 50 Header, 6 Pos
MPN104074-8
Active
TE Connectivity AMPMODU System 50 header, 104074-8, 6 positions, 1.27 mm pitch, single row, right-angle through-hole, shrouded 2-wall, gold mating finish, UL94 V-0, -65°C to 105°C.
$1.5127Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 6 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 104074-8?
The 104074-8 mates with a matching AMPMODU System 50 receptacle (same series, 6 positions, 1.27 mm pitch). Confirm the mating half part number against your harness or board assembly before ordering.
