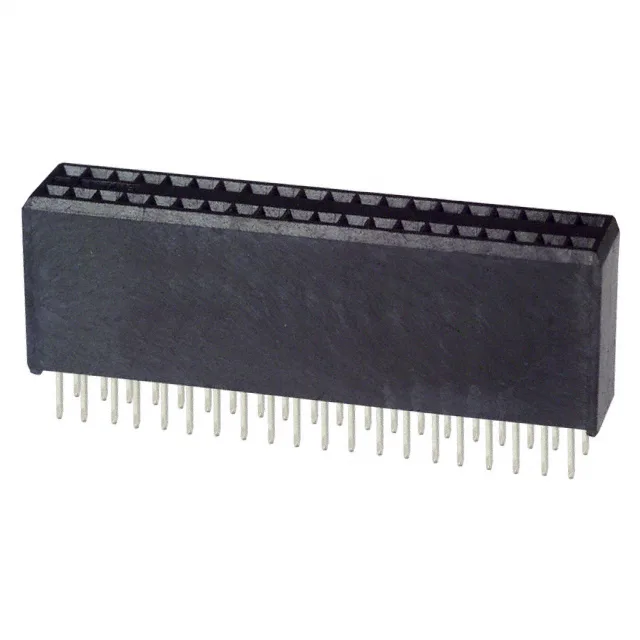

TE Connectivity AMP Connectors 104078-2
MPN104078-2
Active
$7.4543Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.43mm, 12.57mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
