Board-to-board receptacle, 30 positions, 1.27 mm pitch
The 104078-4: It carries gold-plated mating contacts rated 1 A at 30 VAC, with a through-hole solder termination and a push-pull fastening type.

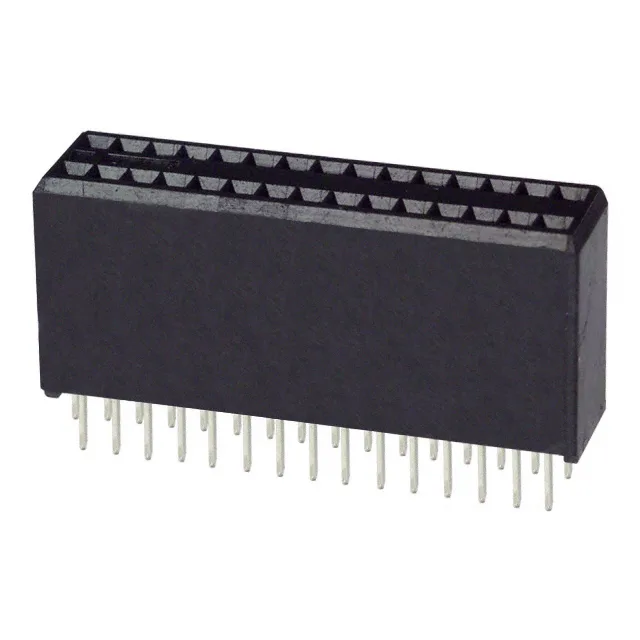

104078-4 TE Connectivity AMPMODU System 50 Receptacle
MPN104078-4
Active
TE Connectivity AMP Connectors AMPMODU System 50 receptacle, order code 104078-4, 30 positions, dual row, 1.27 mm pitch, 30 VAC, 1 A, gold mating contacts, through-hole, solder termination.
$5.6427Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 11.43mm, 12.57mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.100\" (2.54mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mated stack height range for the 104078-4?
The 104078-4 supports mated stacking heights of 11.43 mm and 12.57 mm, depending on the mating header.
What compliance documentation is available for the 104078-4?
RoHS and REACH status should be confirmed at RFQ.
