TE Connectivity AMP Connectors 104128-3 — Pin Headers

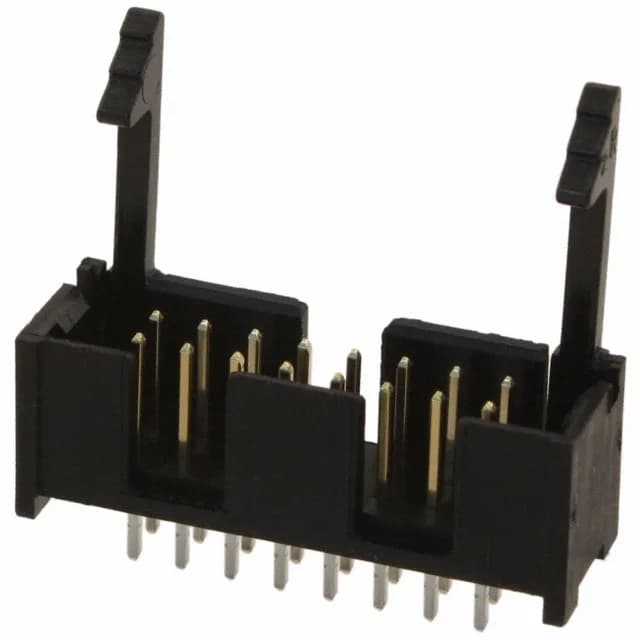

104128-3 TE Connectivity AMP-Latch Header 16 Pos 2.54mm

MPN104128-3
Active

TE Connectivity AMP-Latch 104128-3, Board to Cable/Wire header, 16 circuits, 2-row, 0.100" (2.54mm) pitch, shrouded 4-wall, latch lock/eject hooks, through-hole solder, 1 A per contact, 250 VAC, -65°C to 105°C, UL94 V-0.

$6.8000Ref. price · indicative, final on quote
RoHSNot applicable
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

104128-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.385\" (9.78mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

104128-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

16-position dual-row header for ribbon-cable interconnect

The 4-wall shrouding and long latch lock/eject hooks provide positive retention and guided unmating — a practical choice for cable-to-board connections in control cabinets or test equipment where the cable is frequently disconnected.

Current and voltage envelope

The 1 A limit is typical for the AMP-Latch contact system and keeps the connector in the signal-level domain — not for power distribution.

The tin-lead tails solder reliably into standard through-hole boards.

Frequently asked questions

Does 104128-3 have a latch lock?

Yes. It has latch lock/eject hooks, long type. These lock onto the mating socket and provide a lever for disconnecting under dense wiring.
