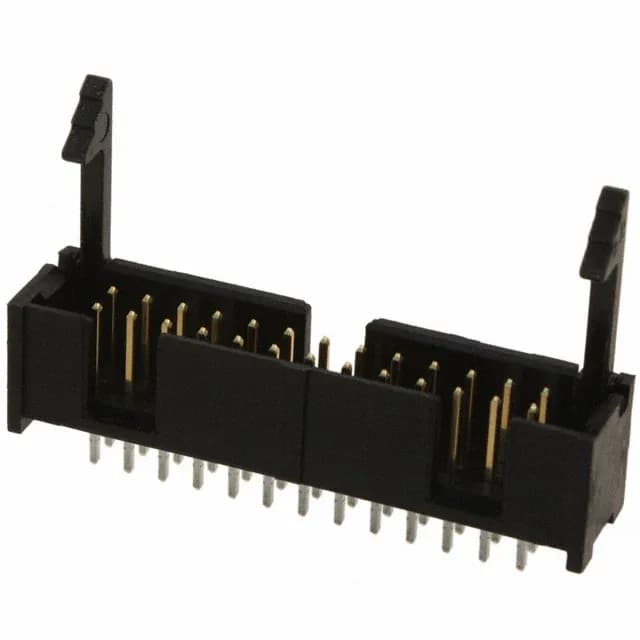

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Gold or Gold-Palladium Mating Finish, 1A per Contact, 250VAC, -65°C ~ 105°C, UL94 V-0, RoHS non-compliant, Active
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.385\" (9.78mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104128-5: This header mates with AMP-Latch IDC socket connectors that accept 26-conductor ribbon cable. The latch lock/eject hooks, long, provide a positive mechanical retention that resists vibration and allows easy unmating for field service.
The part is packaged in trays.
No, the 104128-5 is RoHS non-compliant due to the tin-lead finish on the solder posts. This is a critical constraint for buyers in regulated markets requiring RoHS compliance.
