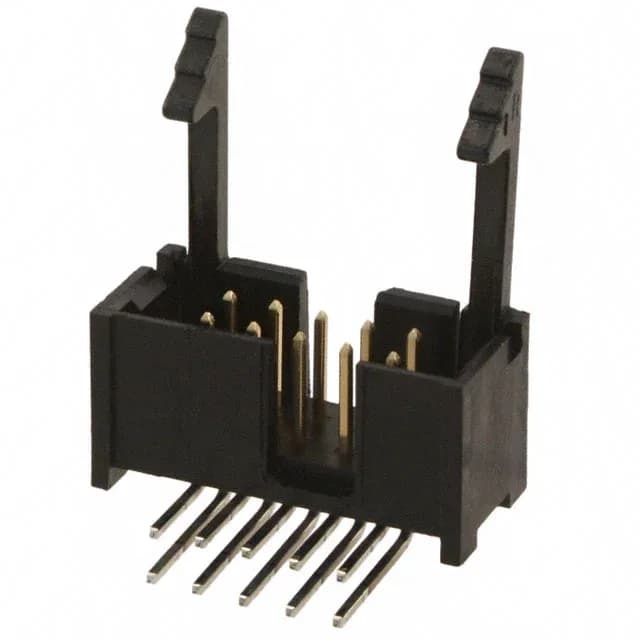

TE Connectivity AMP-Latch 104130-1, Board to Cable/Wire header, 10 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded - 4 wall, latch lock/eject hooks, 1A per contact, 250VAC, gold mating finish.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104130-1: It uses a through-hole, right-angle mounting orientation and a shrouded 4-wall housing with latch lock/eject hooks to keep the mating connector secure under vibration.
Compared to the single-row 1394090-1 (6 positions, 0.112" pitch), the 104130-1 offers more positions in a dual-row layout with the same latch-lock retention style but a tighter pitch for higher-density routing.
The insulation is black glass-filled nylon (PA). The contact finish on the post is tin-lead, which may affect RoHS compliance — verify with your specific requirements. The mating finish is gold or gold-palladium.
