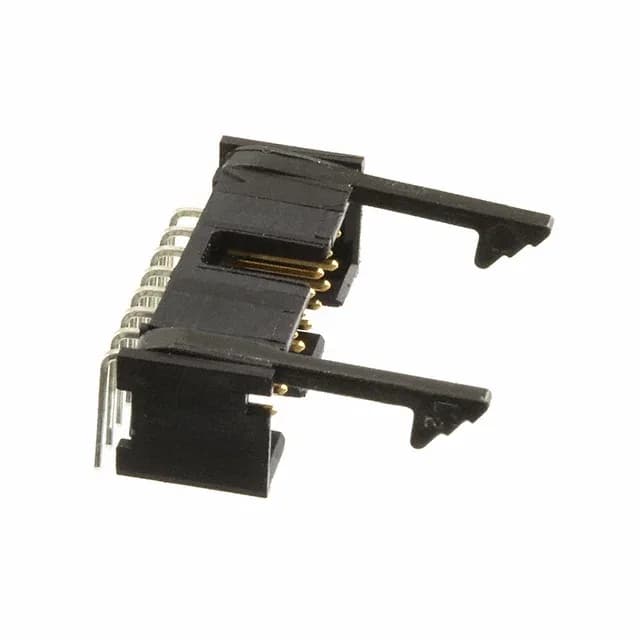

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, Male Pin, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Latch Lock/Eject Hooks, 1 A per Contact, 250 VAC
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104130-3: The four-wall shroud and keying slot prevent mis-mating and protect the male pins during handling. The latch lock/eject hooks provide a positive retention with the mating receptacle, critical for applications subject to vibration or cable strain.
The 104130-3 is an active TE Connectivity AMP-Latch header. Stock and current pricing are confirmed against your BOM quantity when you submit an RFQ. No real-time stock level is published here.
No, the 104130-3 is listed as RoHS non-compliant due to the tin-lead contact post finish.
This header mates with AMP-Latch series receptacles (e.g., 746285-2 or similar 16-position IDC socket housings). Confirm the mating part number against your cable assembly drawing.
