20-Pin Right-Angle Header for Ribbon Cable Assemblies

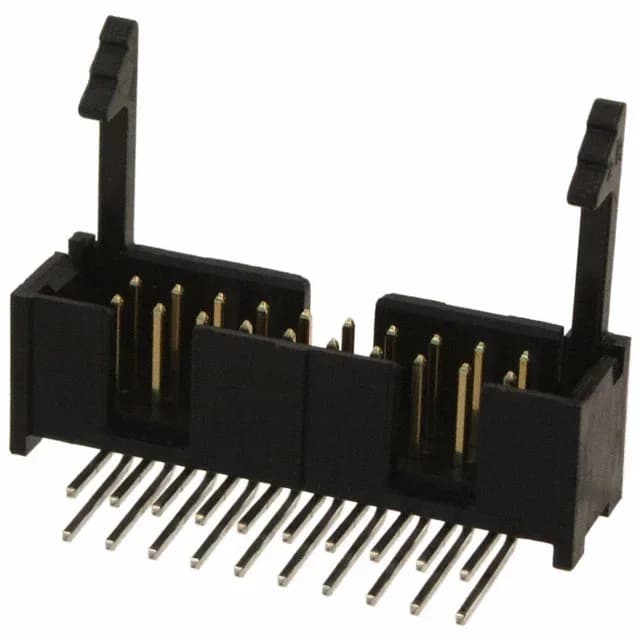

The 104130-4: The latch lock/eject hooks on both ends provide a positive mechanical retention — the header stays mated under vibration, and the eject feature helps unmate a dense ribbon cable without prying at the pins.
Pitch, Pinout, and Ribbon Cable Fit
With 0.100-inch pitch and 0.100-inch row spacing, this header accepts standard 20-conductor IDC ribbon cable — the pin spacing matches the conductor spacing exactly, so the IDC termination bites onto the centre of each conductor, not between them. The keying slot in the shroud ensures the mating receptacle is oriented correctly; pin 1 is typically marked on the housing or the PCB footprint.
The post finish is tin-lead (100.0 µinch), which wets well with standard solder profiles. The glass-filled nylon housing (UL94 V-0 rated) withstands reflow and wave temperatures without distortion.
Lifecycle and Compliance Status
Sourced through independent distribution against RFQ.
