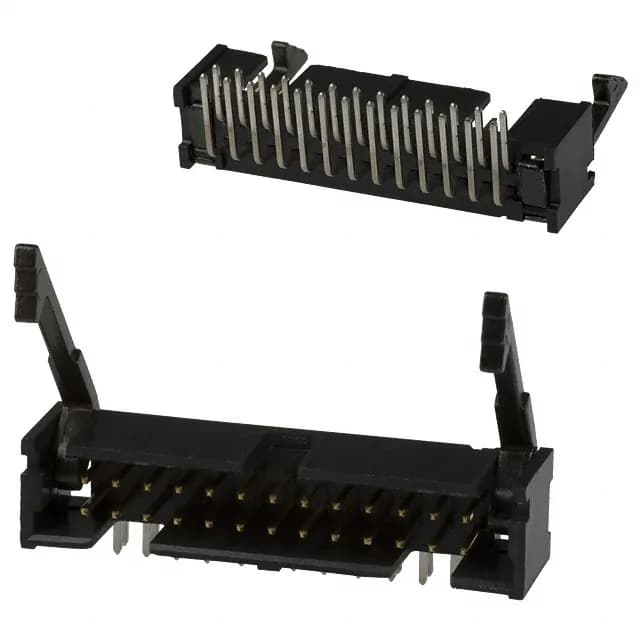

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Gold or Gold-Palladium Mating Contact Finish, 1A per Contact, 250VAC, -65°C ~ 105°C
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.200\" (5.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The solder tails are tin-lead plated (100.0µin), so confirm your assembly line's solder alloy compatibility if you're running lead-free processes.
Submit an RFQ with your target quantity. We source 104130-5 to order — the part is active in production, so lead time and price are confirmed at quote time. No stock-holding claim; we quote against the BOM line.
Yes. This header is part of the AMP-Latch series and mates with the matching AMP-Latch IDC socket family. The 0.100" pitch and latch lock geometry are designed for that interface.
The mating pitch is 0.100" (2.54mm), with the same 0.100" row spacing — standard for AMP-Latch ribbon cable connectors.
