TE Connectivity AMP Connectors 104257-3 — Connector Housings

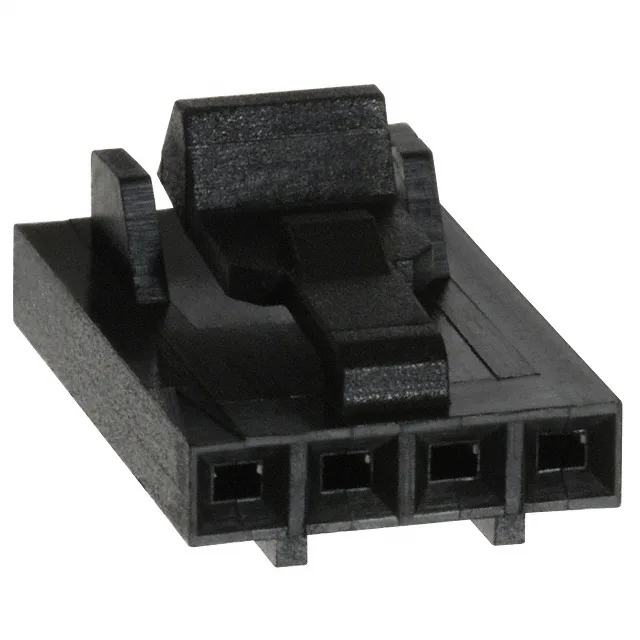

TE AMPMODU MTE 104257-3, 4-Pos Receptacle Housing

MPN104257-3
Active

TE Connectivity AMPMODU MTE receptacle housing, 104257-3, 4-position single-row, 0.100" (2.54mm) pitch, crimp termination, latch lock, free hanging, black thermoplastic, -65°C to 105°C.

$0.6000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU MTE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

104257-3 specifications
ParameterValue
SeriesAMPMODU MTE
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-65°C ~ 105°C
ColorBlack
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

The latch lock provides positive retention against vibration without requiring secondary hardware.

The listing note is clear: Contacts Not Included. The housing accepts the standard AMPMODU MTE female crimp contacts, which are available in strip form for automated crimping or loose-piece for prototype builds.

Mating and fit

This is a female receptacle housing that mates with the AMPMODU MTE male header (through-hole or surface-mount, straight or right-angle). Single-row, 4-position — confirm your mating header has the same circuit count and row configuration.

Frequently asked questions

What contacts are used with 104257-3?

The 104257-3 housing accepts AMPMODU MTE female crimp socket contacts (not included). You order the terminals separately — available in gold or tin plating depending on your mating cycle and environmental requirements.
