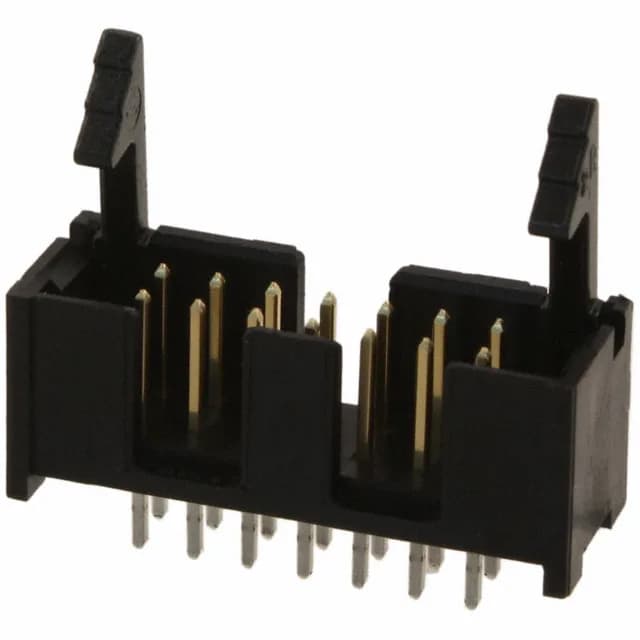

TE Connectivity AMP-Latch series, 14-position shrouded header, 2.54 mm pitch, through-hole solder termination, male pin contacts with gold or gold-palladium mating finish, rated 1 A per contact at 250 VAC, operating temperature -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.385\" (9.78mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
A keying slot in the header body prevents inserting the wrong cable assembly into this position — useful when multiple similar headers sit on the same board or panel.
The 14 positions can carry up to 14 A total if evenly distributed, but the per-contact limit is the binding constraint.
Yes, it includes a keying slot to prevent mismating and short eject hooks for latch-lock retention. The 4-wall shrouding fully encloses the pins.
