TE Connectivity AMP Connectors 104313-3 — Pin Headers

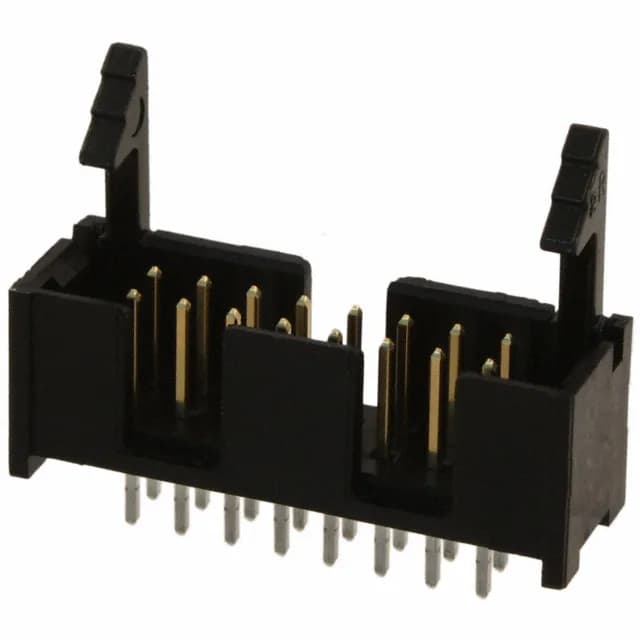

104313-3 TE AMP-Latch 16-Pin Header 2.54mm Pitch

MPN104313-3
Active

TE Connectivity AMP-Latch 104313-3, 16-position, 2-row, 0.100" (2.54mm) pitch, vertical through-hole header, shrouded 4-wall, latch lock/eject hooks, gold-plated mating contacts, 1A per contact, 250VAC.

$4.8800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104313-3 datasheet (PDF)
RoHSNot applicable
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

104313-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.385\" (9.78mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

104313-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

16-position AMP-Latch header with locking hooks

The 104313-3: This is a 16-position, 2-row, 0.100" (2.54mm) pitch vertical through-hole header from the AMP-Latch series. The shrouded 4-wall design and latch lock/eject hooks keep the mating ribbon cable connector seated against vibration and cable strain.

What the 1A and 250VAC ratings mean on the bench

The 1A per-contact rating is conservative for signal-level circuits — think PLC I/O, sensor inputs, or control signals where each pin carries milliamps. The 250VAC ceiling covers standard 24V and 120V industrial control voltages with margin.

Frequently asked questions

Is 104313-3 a shrouded header with locking?

Yes. The header has a shrouded 4-wall design and latch lock/eject hooks (short) that engage the mating connector's locking ears.
