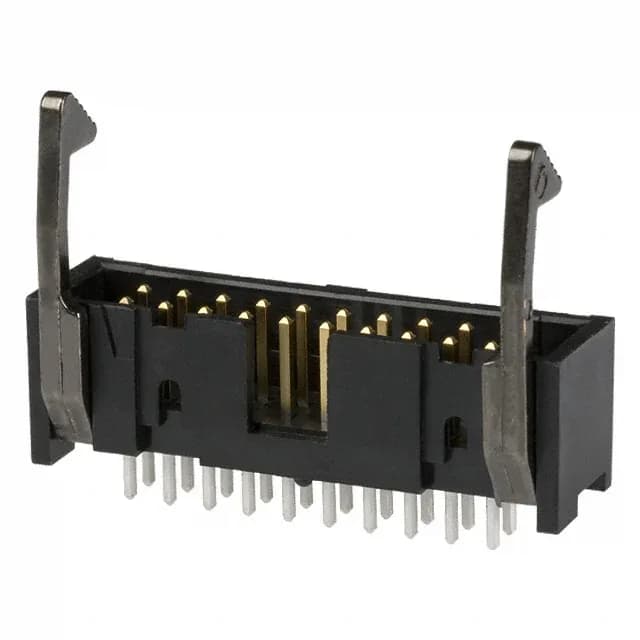

TE Connectivity AMP-Latch header, 104313-4, 20 positions, 2 rows, 0.100" (2.54mm) pitch, shrouded - 4 wall, through hole solder termination, latch lock/eject hooks, male pin, 1A per contact, 250VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.385\" (9.78mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104313-4 is a 20-position, dual-row, shrouded header from the AMP-Latch series, designed to mate with standard AMP-Latch IDC sockets on ribbon cable.
The latch lock/eject hooks, short, secure the mated pair against vibration and provide a lever for unplugging the cable assembly.
The 104313-4 mates with standard AMP-Latch IDC sockets (e.g., 746285-* series) that accept 0.100" pitch ribbon cable. The latch lock/eject hooks on the header engage the socket's locking ears.
