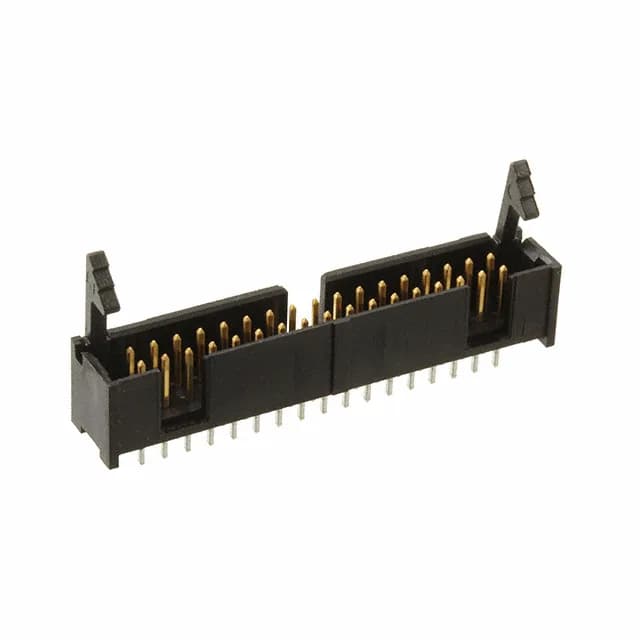

TE Connectivity AMP-Latch, 34-position dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, latch lock/eject hooks, gold or gold-palladium mating finish, rated 1 A per contact at 250VAC, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.385\" (9.78mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104313-6: The shrouded four-wall design protects the male pins during handling and guides the mating half into alignment. Rated 1 A per contact at 250VAC, the current capacity suits signal-level interconnects and low-power distribution within the harness.
The operating temperature range from -65°C to 105°C covers most indoor industrial and commercial equipment environments.
The 104313-6 mates with AMP-Latch ribbon-cable sockets or discrete-wire housings that accept 0.100" (2.54mm) pitch male pins. The latch lock/eject hooks on the header engage with the corresponding latch features on the mating half.
