TE Connectivity AMP Connectors 104315-9 — Pin Headers, Sockets & Housings

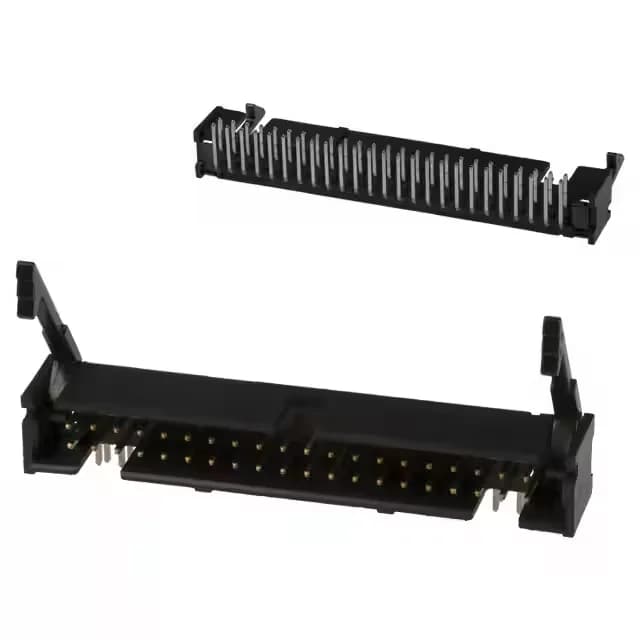

104315-9 TE AMP-Latch Header, 50 Pos, 0.100" Pitch

MPN104315-9
Active

TE Connectivity AMP-Latch series, Board to Cable/Wire header, 50 positions, 2 rows, 0.100" (2.54 mm) pitch, right-angle through-hole solder termination, shrouded with latch lock/eject hooks, gold or gold-palladium mating finish, rated 1 A per contact at 250 VAC.

$8.0459Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104315-9 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

104315-9 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.360\" (9.14mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

104315-9 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

50-Position Right-Angle Header for Dense Cable-to-Board Interconnects

Contact Finish and Current Rating for Signal-Density Duty

The post solder tails are tin-lead plated (100 µinch), which is compatible with standard leaded soldering processes; note the RoHS exemption status for tin-lead in this application.

Latching, Keying, and Housing Construction

Latch lock/eject hooks on the shroud provide positive retention with the mating receptacle, preventing accidental disconnection under vibration or cable pull.

Frequently asked questions

Does the 104315-9 have a keying slot?

Yes, the header includes a keying slot in the shroud to prevent mis-mating with non-keyed receptacles.
