TE Connectivity AMP Connectors 104338-2 — Pin Headers, Sockets & Housings

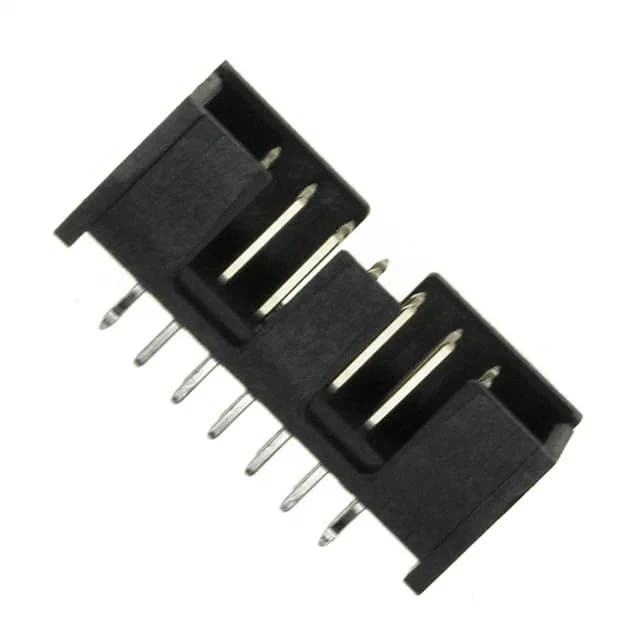

104338-2 TE AMP-Latch Header, 14 Pos, 0.100" Pitch, Obsolete

MPN104338-2
Obsolete

TE Connectivity AMP-Latch shrouded header, 104338-2, 14 circuits, 0.100" (2.54 mm) pitch, dual-row, through-hole, kinked pin solder termination, gold or gold-palladium mating finish, UL94 V-0.

$3.1000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104338-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

104338-2 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorGray
Insulation height0.385\" (9.78mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

104338-2 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board footprint and routing

The 104338-2: The 0.100" row spacing matches standard perfboard and ribbon-cable pitch — the footprint is a direct fit for AMP-Latch IDC receptacles. Through-hole mounting with kinked pins — the kink provides retention during wave solder before the solder joint solidifies.

Mating system and keying

Contact finish on the mating face is 15 µinch gold or gold-palladium over phosphor bronze — rated for repeated mating cycles. The post finish is tin-lead (100 µinch), which wets well with standard solder profiles.

Frequently asked questions

Where can I buy 104338-2?

Submit an RFQ for current availability, lead time, and pricing — no stock-holding claim is made on this listing.

Does 104338-2 have a mating connector part number?

104338-2 mates with AMP-Latch IDC socket connectors in the same series. The mating half is a 14-position, 0.100" pitch, dual-row IDC receptacle — confirm the specific part number against the wire gauge and cable type required.

What is the pitch and row count of 104338-2?

Row spacing is also 0.100" (2.54 mm).
