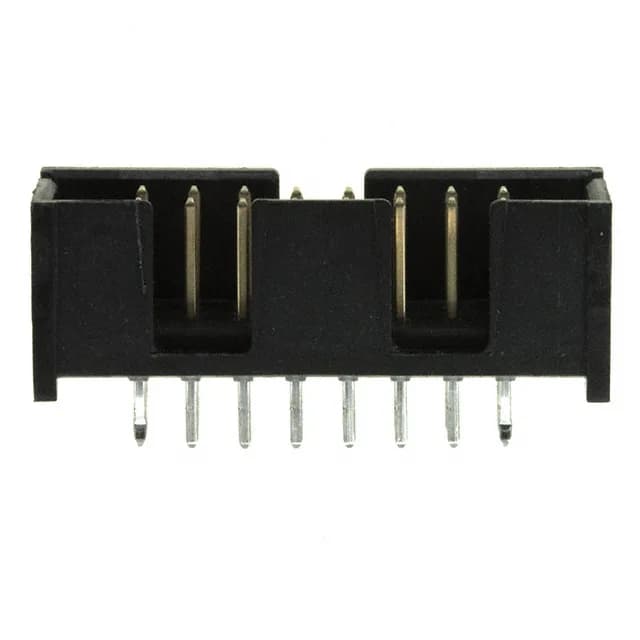

TE Connectivity AMP-Latch header, order code 104338-3, 16 positions, dual row, 0.100" (2.54 mm) pitch, 1 A per contact, gold or gold-palladium mating contacts, through-hole, kinked pin solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Gray |
| Insulation height | 0.385\" (9.78mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 104338-3 is the 16-circuit member of TE's AMP-Latch shrouded header line, designed for board-to-cable/wire connections. It carries gold or gold-palladium mating contacts rated 1 A per contact, through-hole mounted with kinked solder pins, in a 4-wall shrouded housing with a keying slot.
