TE Connectivity AMP Connectors 104340-2 — Pin Headers, Sockets & Housings

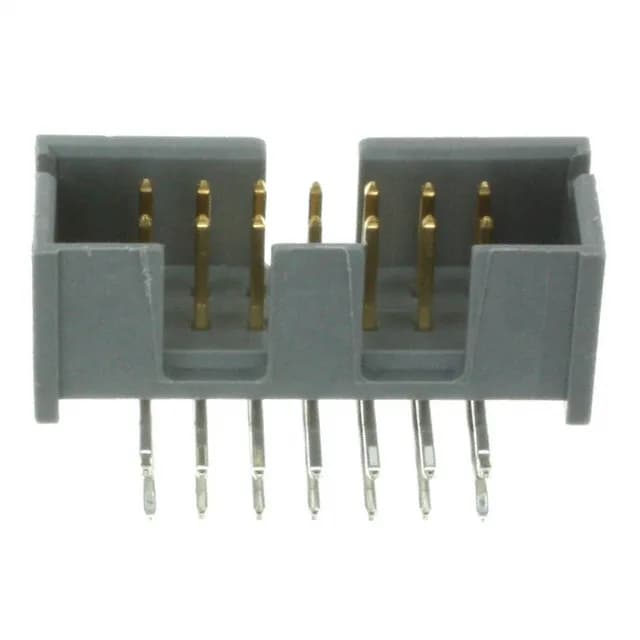

104340-2 TE Connectivity AMP-Latch Header, 14 Pos

MPN104340-2
Obsolete

TE Connectivity AMP-Latch, Board to Cable/Wire, Header, Male Pin, 14 Positions, 0.100" (2.54mm) Pitch, Right Angle, Through Hole, Kinked Pin Solder, Gold or Gold-Palladium Mating Finish, 1A per Contact, UL94 V-0, Black Insulation.

$2.3881Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 104340-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

104340-2 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.365\" (9.27mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

104340-2 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

14-Position Right-Angle Header — Board Fit and Orientation

The 104340-2: The push-pull latch secures the mated pair without tools.

TE Connectivity lists the 104340-2 as Obsolete. Because the connector is end-of-life, buyers should verify the mating half availability and consider a board spin if a pin-compatible alternative is required. The base product number 104340 may share tooling with other position counts in the AMP-Latch series, but no drop-in replacement is documented.

The per-contact current rating is 1 A, which limits the connector to low-power signal or sensor circuits, not power distribution.

Frequently asked questions

What is the replacement for 104340-2?

A board spin may be required to use a different AMP-Latch position count or a different header series. The base product number 104340 may share tooling with other position counts, but no drop-in is documented.

What is the pitch and mounting type of 104340-2?

The mounting type is through hole, right angle, with kinked pin solder termination.
