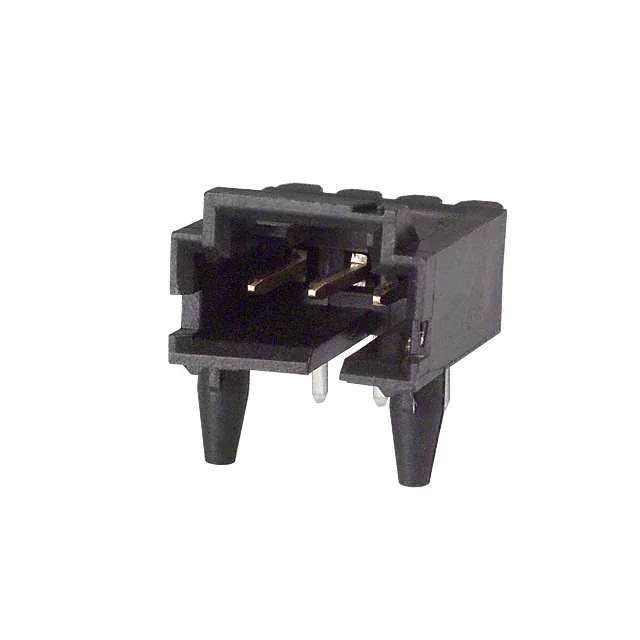

TE Connectivity AMPMODU MTE header, order code 104361-2, 3 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded 4-wall with latch holder.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 104361-2 is the 3-position single-row member of the TE AMPMODU MTE header line, with gold-plated mating contacts rated for 3 A per circuit.
A 4-wall shrouded housing with keying slot and latch holder protects the mating interface and prevents mis-mating. The board lock holds the header during reflow and adds shear resistance to the solder joints.
The style is Board to Board or Cable, per the TE Connectivity AMPMODU MTE series specification.
RoHS and REACH compliance documentation is available from the manufacturer; confirm the specific compliance status with the datasheet or supplier.
