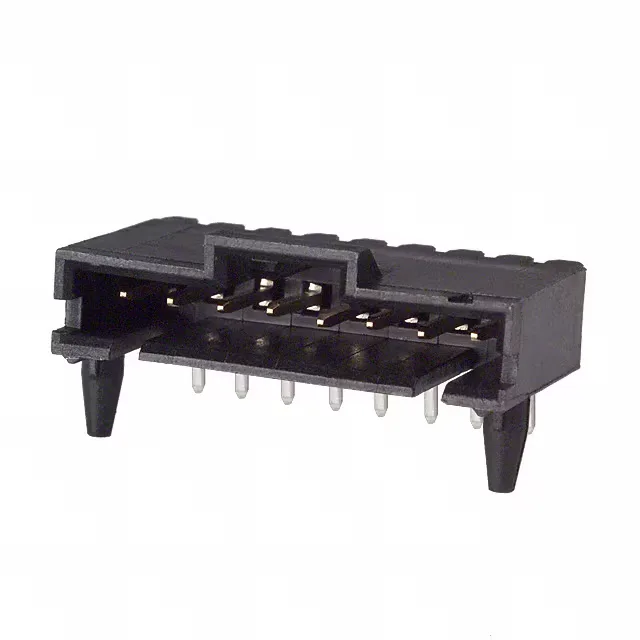

TE Connectivity AMPMODU MTE, 8-position single-row shrouded header, 0.100" (2.54 mm) pitch, right-angle through-hole, gold-plated mating contacts, 3 A, UL94 V-0, board lock and latch holder.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 104361-7: It is a shrouded – 4-wall design, which means the receptacle housing nests inside the header shroud — no exposed pins to snag or short during handling.
The 0.100" pitch and 8-position single-row layout match standard AMPMODU MTE receptacles — the same series, same latch geometry. This is a wire-to-board or board-to-board interconnect, depending on the mating half chosen.
104361-7 is sourced through independent distribution. Submit an RFQ for current pricing and availability — no stock-holding claim, confirmed per inquiry.
The contact finish on the post is tin-lead, which means this part is not RoHS compliant. The mating finish is gold. Check the full compliance documentation in the product drawing.
