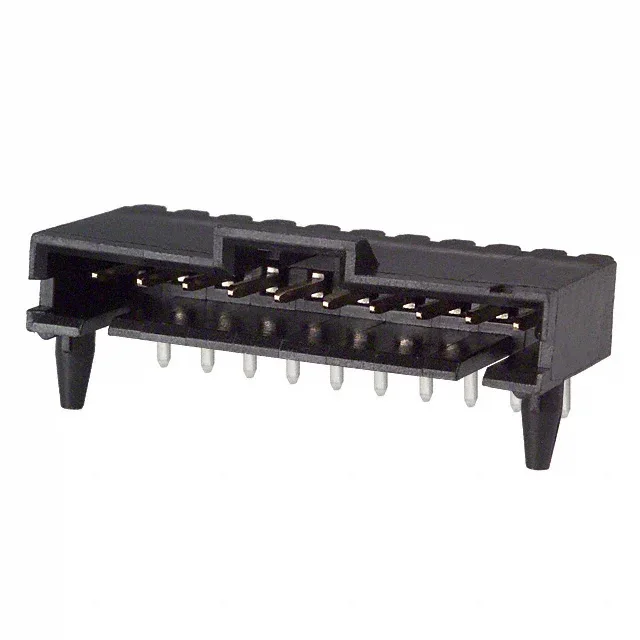

TE Connectivity AMP Connectors AMPMODU MTE series, 104361-9, shrouded header, 10 circuits, 0.100" (2.54 mm) pitch, through-hole right-angle, gold-plated mating contacts, board lock, keying slot, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock, Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The keying slot aligns the mating receptacle, reducing the chance of a mis-mated pair on the line.
The base product number is 104361, which covers the AMPMODU MTE header family.
Mates with AMPMODU MTE receptacle housings that accept 22-30 AWG crimp terminals. Termination is solder — through-hole posts 0.145" (3.68 mm) long suit standard PCB thicknesses. The square pin provides four contact points in the receptacle beam for reliable electrical connection.
The 104361-9 is sourced through independent distribution against an RFQ.
The 104361-9 mates with AMPMODU MTE receptacle housings that accept 22-30 AWG crimp terminals.
