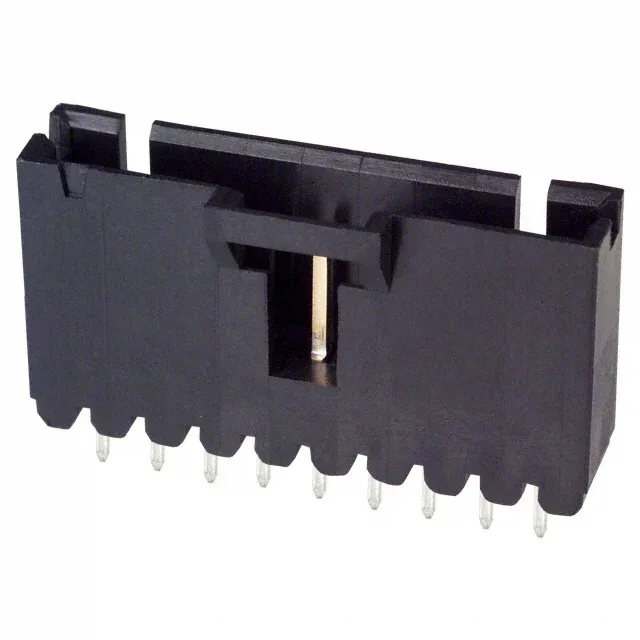

TE Connectivity AMP Connectors AMPMODU MTE header, 104363-8, 9-position single-row, 0.100" (2.54 mm) pitch, through-hole solder termination, shrouded 4-wall, gold mating finish, rated 3 A, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU MTE |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.550\" (13.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 104363-8: The single row saves board real estate compared to dual-row headers, and the 9 circuits match common sensor or I/O signal bundles.
The keying slot prevents mismating with non-keyed counterparts.
Contact material is brass with tin-lead plating on the solder posts (100 µinch) and gold on the mating surface (15 µinch).
The AMPMODU MTE series includes multiple position counts and plating options. For a direct pin-compatible substitute, check the base number 104363 — variations differ by contact finish (gold vs tin) or post length. Confirm the mating half and board footprint before substituting.
This is a male pin header — the contacts are square male pins. It mates with AMPMODU MTE receptacle housings that accept female crimp terminals.
