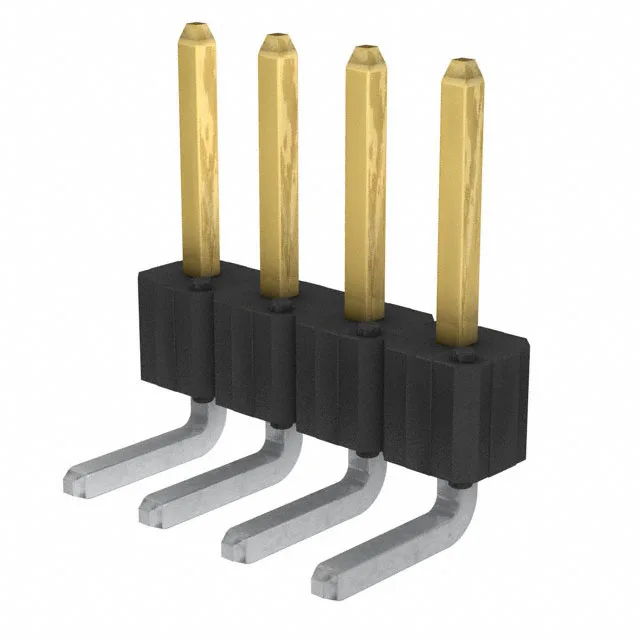

TE Connectivity AMPMODU Mod II header, breakaway, order code 104430-2, 4 positions, single row, 0.100" (2.54 mm) pitch, 3 A, 30 VAC, gold-plated mating contacts, through-hole right-angle, press-fit or solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.138\" (3.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 104430-2 is the 4-position member of TE's AMPMODU Mod II breakaway header line, unshrouded with a push-pull fastening interface. It carries gold-plated mating contacts rated 3 A at 30 VAC and mounts through-hole right-angle, accepting press-fit or solder termination.
The 104430-2 is listed as a Board to Board or Cable style connector.
