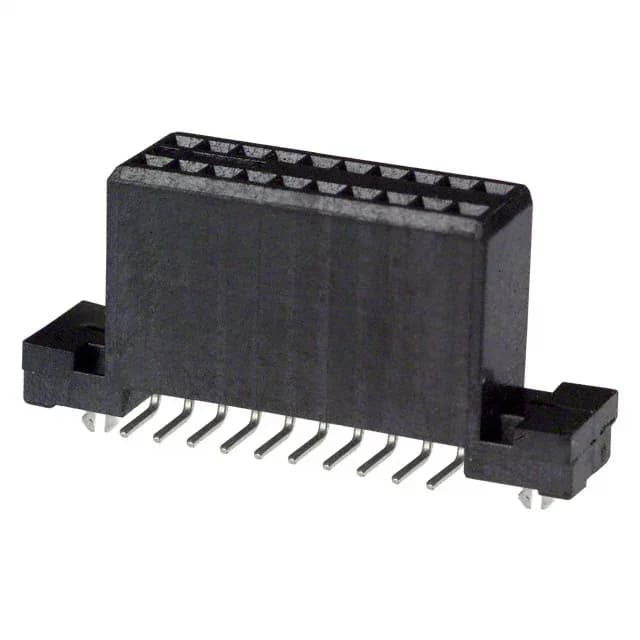

TE Connectivity AMPMODU System 50 receptacle, order code 104550-2, 20 positions, dual row, 1.27 mm pitch, 30 VAC, gold-plated mating contacts, surface-mount, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.370\" (9.40mm) |
| Insulation material | Polyphthalamide (PPA) |
| Mated stacking heights | 11.94mm, 13.08mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Lock |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 104550-2: Gold-plated mating contacts are rated 30 VAC; the surface-mount tails include a board lock for reflow retention.
The 104550-2 supports two mated stack heights: 11.94 mm and 13.08 mm.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer.
